• Excel in complex applications with trace elements and variable-based matrices
• Best for soils, plant materials, environmental monitoring, industrial waste applications, cosmetics, pharmaceuticals, trace heavy metals, rare earth elements, and more
• Indirect excitation, high-power X-ray tube (50 kV 50 W or 65 kV 100 W), large-area high-throughput SDD
• Dimensions: 463 (W) × 492 (D) × 382 (H) mm

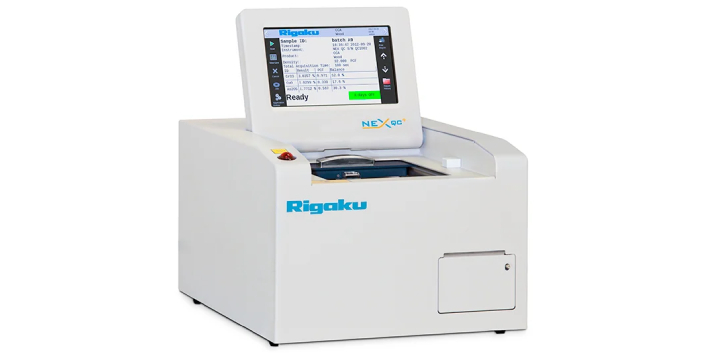

• Best for routine measurements, basic QC, fieldwork, and teaching
• Three-model series, from built-in PC convenience to external PC power for expanded capabilities
• Direct excitation, 50 kV 4 W X-ray tube, high-performance silicon drift detectors

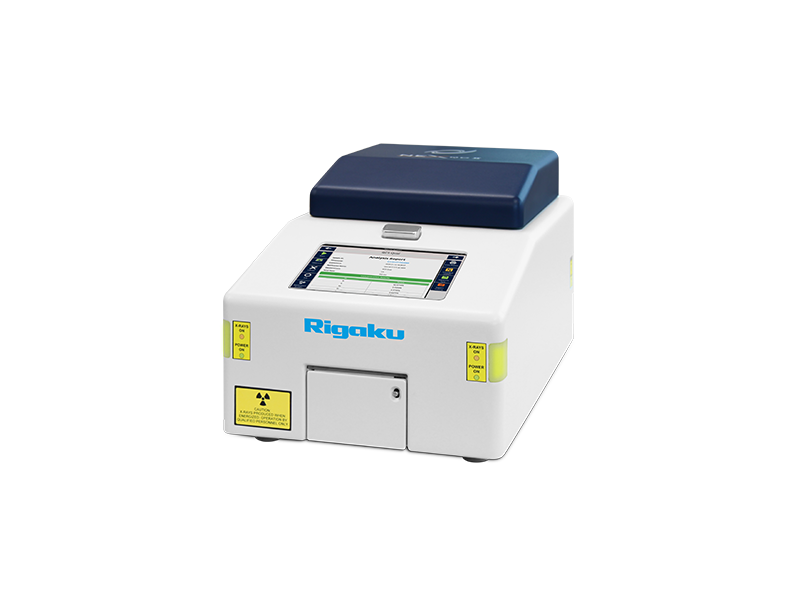

• Dimensions: 287 (W) x 465 (D) x 262 (H) mm (NEX QC II and NEX QC II+); 331 (W) x 432 (D) x 232 (H) mm (NEX QC+ QuantEZ)

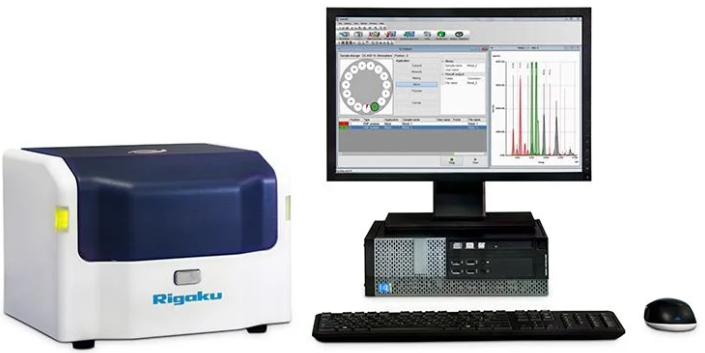

High-performance Direct Excitation EDXRF Spectrometers

Powerful, non-destructive qualitative and quantitative elemental analysis

The Rigaku NEX DE Series are high-performance, direct excitation EDXRF spectrometers that deliver exceptional elemental analysis capabilities. Utilizing a high-powered X-ray tube, these instruments provide superior analytical performance, including higher count rates, improved precision, and the ability to analyze even challenging materials with ease. This versatility allows the NEX DE Series to address a wide range of applications, from demanding quality control needs to those requiring small spot analysis. The series includes NEX DE and NEX DE VS.
